SF Servo(electric) Dynamometers
|
|
| Features: |
| .A kind of power-transfer dynamometer, and the power is consumed out of the dynamometer. So it can continuously run with high power |
| .It is really long life dynamometer. The heat produced by the consumed power is lost on the outside resistance, so the temperature-rise of dynamometer is low |
| .Can use the energy feedback unit to replace the load resistance. |
| .High dynamic response to test unstable area of asynchronous (induction)motor |
| .It can run as load unit, so it can be used in motor test system, and it can also run as driver unit, so it can be used in generator, gas engine, water pump test |
| |
Model |
Rated Torque |
Rated Speed |
Max speed |
|
| |
(N·m) |
(r/min) |
(r/min) |
5 minitus |
Continuous |
SFM-50W-30 |
0.16 |
3000 |
6000 |
0.05 |
0.02 |
SFM-200W-30 |
0.64 |
3000 |
6000 |
0.2 |
0.15 |
SFM-400W-30 |
1.27 |
3000 |
6000 |
0.4 |
0.3 |
SFM-750W-30 |
2.39 |
3000 |
6000 |
0.75 |
0.55 |
SF-1.1KW-15 |
7.5 |
1500 |
8000 |
1.1 |
0.75 |
SF-1.5KW-15 |
11 |
1500 |
8000 |
1.5 |
1.1 |
SF-2.2KW-15 |
15 |
1500 |
8000 |
2.2 |
1.5 |
SF-2.2KW-30 |
7.5 |
3000 |
10000 |
2.2 |
1.5 |
SF-3.7KW-15 |
24 |
1500 |
8000 |
3.7 |
2.2 |
SF-3.7KW-20 |
17.6 |
2000 |
8000 |
3.7 |
2.2 |
SF-5.5KW-15 |
35 |
1500 |
8000 |
5.5 |
3.7 |
SF-5.5KW-30 |
17.5 |
3000 |
8000 |
5.5 |
3.7 |
SF-7.5KW-15 |
47.8 |
1500 |
8000 |
7.5 |
5.5 |
SF-7.5KW-30 |
23.8 |
3000 |
8000 |
7.5 |
5.5 |
SF-11KW-15 |
73 |
1500 |
6000 |
11 |
7.5 |
SF-11KW-30 |
35 |
3000 |
8000 |
11 |
7.5 |
SF-15KW-15 |
99.5 |
1500 |
6000 |
15 |
11 |
SF-15KW-30 |
47.8 |
3000 |
8000 |
15 |
11 |
SF-22KW-15 |
143 |
1500 |
6000 |
22 |
15 |
SF-22KW-30 |
73 |
3000 |
6000 |
22 |
15 |
SF-37KW-15 |
238 |
1500 |
4000 |
37 |
30 |
SF-37KW-30 |
122 |
3000 |
6000 |
37 |
30 |
SF-55KW-15 |
355 |
1500 |
4000 |
55 |
37 |
SF-55KW-30 |
177 |
3000 |
6000 |
55 |
37 |
SF-75KW-15 |
483 |
1500 |
4000 |
75 |
55 |
SF-75KW-30 |
239 |
3000 |
5000 |
75 |
55 |
SF-180KW-30 |
582 |
3000 |
4000 |
180 |
150 |
??Note:
· The type H high-speed dynamometer can be made according the customer’s requirements.
· The list above is only a part of the whole SF dynamometers, please contact us if want other

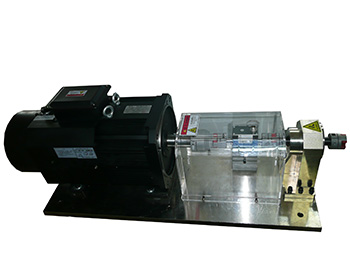

· The economic BC dynamometer can be made to replace the SF dynamometer. |
| |
